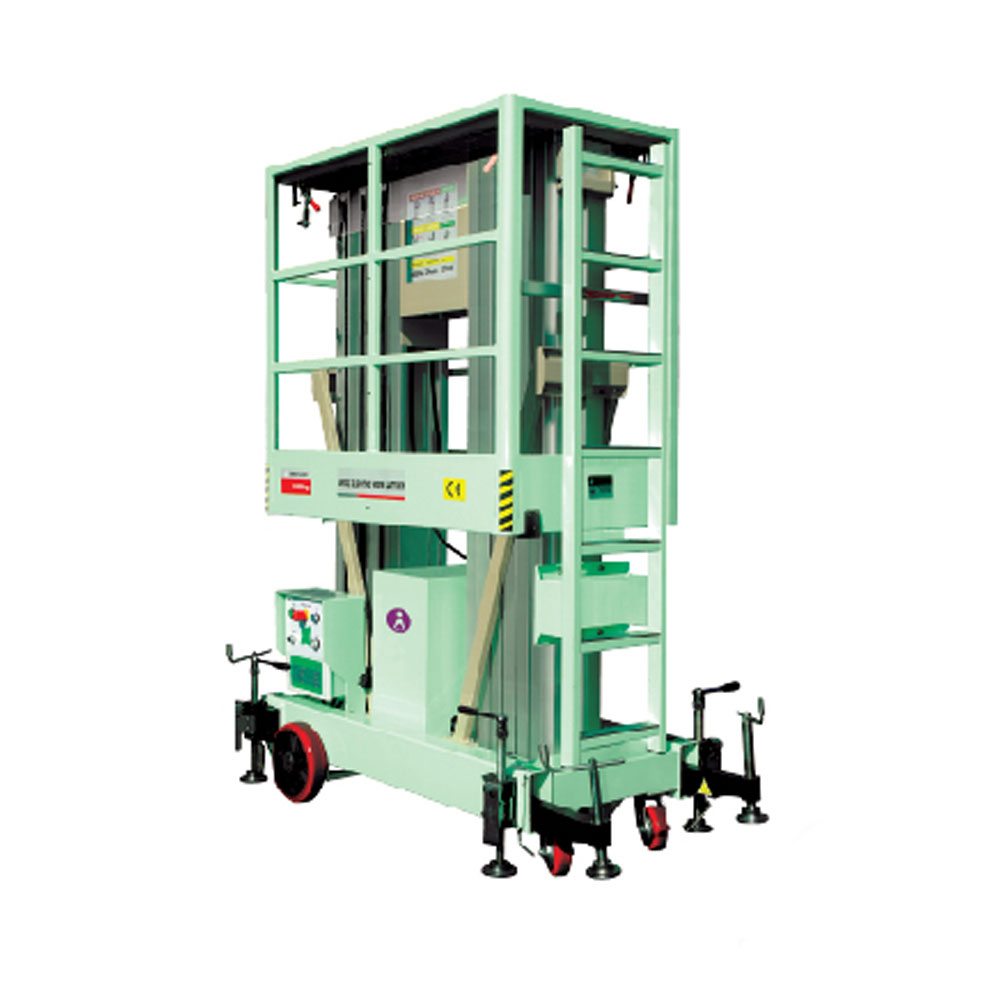

Aerial Work Platform
- Ergonomic ground control panel, power display, electic leakage protection, circuit breaker etc.
- CE certified stabilizers and electric safety switch elements from the inter-lock for platform ascending and descending.
- Stable and Reliable.
- Simple and Convenient.
Description
Features
| Safety Electrical Features | Double Protection with supporting bolts and evolvable stabilizers to minimize the blind area of aerial work platform usage. |
 |
 |
Spesifikasi
| Model | Max. Platform Height (m) | Max. Working Height (m) | Capacity (kg) | No. of Person Permitted on The Platform | Platform Size (mm) | Outrigger Footprint (mm) | Voltage (V/Hz) | Motor Rating Lifting (KW) | Stored Dimension L x W x H (mm) | Product Weight (kg) |
| GTWY6-1006 | 6 | 7.7 | 160 | 1 | 630 x 650 | 2.060 x 1.900 | AC 220/50 | 0.75 | 1.290 x 880 x 1.740 | 390 |
| GTWY8-1008 | 8 | 9.7 | 136 | 1 | 630 x 650 | 2.300 x 2.180 | AC 220/50 | 0.75 | 1.290 x 880 x 2.080 | 420 |
| GTWY10-1010 | 10 | 11.7 | 120 | 1 | 630 x 650 | 2.400 x 2.280 | AC 220/50 | 0.75 | 1.390 x 880 x 2.160 | 480 |
| GTWY8-2008 | 8 | 9.7 | 300 | 2 | 1.200 x 600 | 2.020 x 2.000 | AC 220/50 | 0.75 | 1.390 x 880 x 1.860 | 610 |
| GTWY10-2010 | 10 | 11.7 | 300 | 2 | 1.200 x 600 | 2.340 x 2.220 | AC 220/50 | 0.75 | 1.590 x 880 x 2.060 | 680 |
| GTWY12-2012 | 12 | 13.7 | 250 | 2 | 1.300 x 600 | 2.560 x 2.460 | AC 220/50 | 1.5 | 1.590 x 1.020 x 2.440 | 810 |
| GTWY14-4214 | 14 | 15.7 | 200 | 1 | 1.480 x 860 | 3.350 x 3.000 | AC 220/50 | 0.75 / 1.5 | 2.360 x 1.250 x 1.920 | 1.950 |
| GTWY16-4216 | 16 | 17.7 | 136 | 1 | 700 x 700 | 4.100 x 3.000 | AC 220/50 | 0.75 / 1.5 | 3.120 x 1.250 x 2.190 | 2.100 |
| GTWY18-4218 | 18 | 19.7 | 136 | 1 | 700 x 700 | 4.100 x 3.140 | AC 220/50 | 0.75 / 1.5 | 3.120 x 1.390 x 2.350 | 2.200 |
